Product description
PC PeripheralsKeyboards & AccessoriesGaming keyboard from Wuque Studio

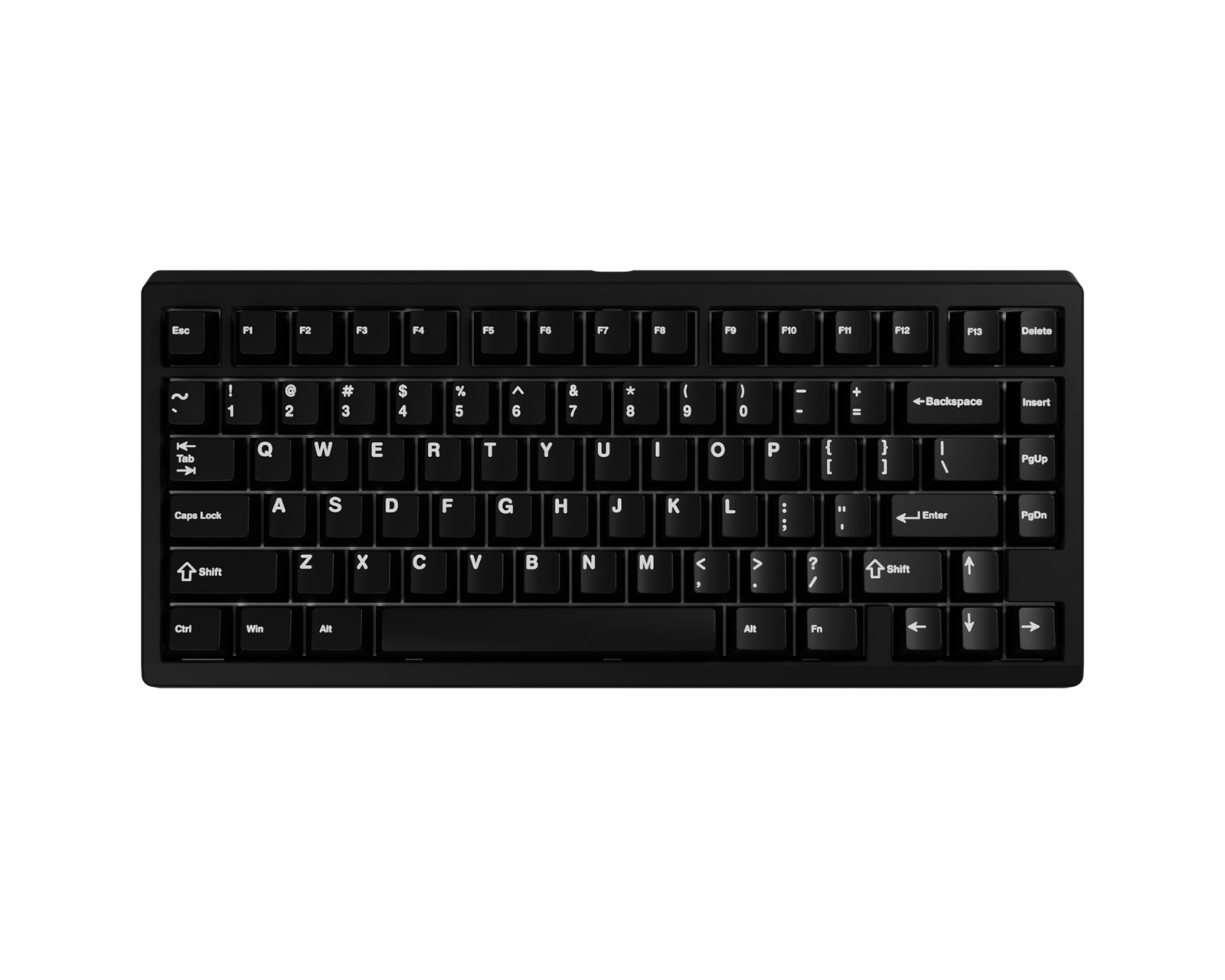

The ZOOM75 HE is a magnetic switch variant of the popular ZOOM75, designed for precise game control.Experience the difference between magnetic switches that use a lower Hall sensor and an upper magnet. The activation point is determined by evaluating the strength of the induced current, providing unique and precise control in every game situation.
With automatic calibration via the Baseline Calibration algorithm, the ZOOM75 HE ensures consistent performance despite the temperature, humidity, or magnetic differences.
With adjustable actuation points, from 0.1mm to 4.0mm, gain the upper hand. Adjust the actuation distance of each key to find your ideal key travel distance and elevate your gaming experience with the ZOOM75 HE.
Keyboard Specifications:
- Gasket Mount Design
- ANSI Layout
- 75% Layout
- PCB: 1.6mm, with Ai03 DB
- 5° Typing angle
- 22.14 mm front height
- Dimension: 323.6 x 145.78 x 34.73 (mm)
- Default plate: Alu
- Case Material: 6063 Aluminum
- Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
- Backplate and External Weight: Anodized+Infill
- Switches Type: Gateron KS37B
- The Orientation of the Switches: North Facing
- No SS Internal Weight
- Boog75 Wired Polling Rate: 1000hz
- QMK or VIA Support: No, customization requires to use of our independent driver.
- Total weight: About 3kg
Keycap Specifications:
- Manufacturer: WS PBT
- Keycap Material: Doubleshot PBT
- Keycap Thickness: 1.6mm
- Keycap Profile: Cherry
- Keys QTY: 81 keys
Switch Specifications:
- Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
- Initial Force:30±10gf.
- Total travel:4.0±0.2mm.
- Operation Lifetime:150,000,000 Cycles.
- Bottom Force: 50±10gf.
- Top Housing Material: Thermoplastic, Transparent
- Bottom Housing Material: Thermoplastic, Red
- Stem Material: Thermoplastic, Red
- Spring Material: Stainless steel
Highlights:
- Dual-rail structure for stability.
- Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
- Extended the stem for better switch stability.
- Integrated spotlight lens design, enhancing light guidance.
- Every switch features a very tight housing and a perfect coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!
Kit Contents:
Fully Assembled Keyboard, including:
- Top and bottom cases
- HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
- Case foam
- The themed keycaps
- Tool accessories
Article number:
Our article number: 30379
Manuf. article number: WS-ZOOM75-HE-BLK
Brand
Just a few years ago, in 2020, Wuque Studio was founded by two enthusiastic technology lovers. Since then, Wuque Studio has expanded rapidly, reaching out to enthusiasts all over the world. Their focus on innovative and unique design makes their custom keyboards and accessories a market favorite.
Through careful listening and consideration of feedback from their dedicated community of gaming and keyboard enthusiasts, Wuque Studio strived to create the perfect keyboards and other accessories for gaming. The aim is for the range to suit each user's needs and requirements through pioneering keyboard design and innovation projects.
Specifications
Connection
| Connection | USB |
| Wireless | No |
Properties
| Mechanical switches | No |
| Switch type | Optical |
| Form factor | 75% |
| Button layout | ANSI |
| Language layout | ANSI |
| Backlight | Yes, RGB |
| Backlight color | RGB (16.8 m) |
| Button material | PBT Double-shot |
| Multimedia keys | No |
| Wrist rest | No |
| N-key rollover | Yes |
| Anti-ghosting | Yes |
| Hotswap | Yes |
| Profile | Cherry |
| Colour | Black |
Warranty
| Warranty | 1 year warranty |
